ULTIMATE ONE STOP SOLUTION FOR PORTABLISM




OMNI Key Features

CNC ALUMINIUM PLATTER
CNC ALUMINIUM TONEARM

  • EXTREMELY STRONG BELT DRIVEN METAL PLATTER WITH 2.5MM THICKNESS

  • First portable turntable using full metal tonearm, all CNC machined parts, anodized for smooth and long lasting finish.

  • Custom made ultra low friction ball bearings are installed on all axes.

CONTACTLESS FADERS (OMNIFADER)

  • BUTTER SMOOTH CUT AND VOLUME FADERS

BLUETOOTH AUDIO RECEIVER

  • STREAM BEATS AND MUSIC VIA BLUETOOTH DEVICE

DVS CAPABILITY

  • DVS OUT OF THE BOX WITH OUR ANDROID APP “FRESHER” AND OTHER COMPUTER APPLICATIONS

AT3600L CARTRIDGE

  • FIRST PORTABLE TURNTABLE USING HIFI GRADE CARTRIDGE

HIGH TORQUE MOTOR

  • BEST MOTOR IN ITS CLASS, CUSTOM DESIGNED MOTOR CONTROL CIRCUITRY

18650 INTERNAL BATTERY

  • CHARGES AND PROTECTS TWO 18650 BATTERIES (BATTERIES SOLD SEPARATELY). CAN CHARGE AND PLAY AT THE SAME TIME. PLAY TIME UP TO 8 HOURS

OMNI - The Goldsmith

GOLDEN ALUMINIUM TONEARM

  • CNC machined parts, anodized in golden color for luxury looking and long lasting finish.

The Goldsmith fader cap

  • Machined from solid piece of aluminium, anodized in golden color. It's indestructible, lasts a life time.

  • 3 grams heavier than the original ultra light weight plastic cap, feels present and smooth.

ULTRA PITCH

33: +/- 15%
45: +/- 15%
Ultra: +/-50% @ 33rpm

SPEED SWITCH

33 / 45 / ULTRA

E.Q. SWITCH

SWITCH BETWEEN SCRATCH / FLAT / HI-FI
- SCRATCH : HIGH PASS FILTER
- FLAT: BY PASS EQ
- HI-FI: BOOST BASS AND TREBLE

internal SPEAKER

5 WATTS SPEAKER ALLOWs YOU TO SCRATCH AND PLAY MUSIC

BUILD-IN PHONO PREAMP

HIGHEST QUALITY PHONO PREAMP IN ITS CLASS, PRECISION RIAA CURVE RECREATION WITH AUDIO GRADE COMPONENTS


OMNIFADER

CONTACTLESS FADERS

OMNIFADER IS CUSTOM DESIGNED IN-HOUSE. A DIGITAL FADER THAT PROVIDES ULTRA FAST AND PRECISION CUTS. RESPOND TIME LESS THAN 1MS, ULTRA SMOOTH AND LIGHT WEIGHT FADER STEM. FEELS LIKE HIGH END MIXERS, READY TO PERFORM ANY HARDCORE SCRATCH TRICKS. UNLIKE MOST 3RD PARTY FADERS WHICH ONLY ALLOWED TO CUT, OMNIFADER ALSO PROVIDES LINEAR CONTROL AS THE VOLUME FADER.

OMNIFader Caps

Custom designed composite curved side walls. Perfect match for 45 degree fader setup.

FADER SWitCH

SELECT BETWEEN LEFT OR RIGHT FADER AS MAIN CROSS FADER

REV. SWitCH

REVERSE MAIN CROSS FADER DIRECTION

  • SPK. VOL

    INTERNAL SPEAKER VOLUME ADJUST

  • PHONO / LINE

    PHONO AND LINE LEVEL AUDIO OUTPUT (RCA)

  • LINE. VOL

    LINE OUTPUT VOLUME ADJUST

  • VINYL / DVS

    VINYL / DVS SWITCH - SWITCH BETWEEN ANALOG VINYL OR DVS MODE

  • HEADPHONE VOL

    HEADPHONE VOLUME ADJUST

  • (HEADPHONE ICON)

    3.5MM HEADPHONE OUTPUT

  • AUX

    3.5MM STEREO AUX INPUT, BLUETOOTH AUDIO WILL BE DEFEATED WHEN THIS IS PLUGGED IN

  • ON / OFF

    POWER SWITCH, TURN OMNI ON / OFF

  • DVS

    USB-C DVS, PROVIDE DATA TRANSFER FOR DVS APPLICATIONS

  • (CHARGE ICON) BATTERIES CHARGING LED

    CHARGING - BLINK FULLY CHARGED - ON PLAY - ON BATTERIES LESS THAN 20% - BLINK

  • POWER

    USB-C POWER INPUT, 5V 1000-2000MA IS RECOMMENDED.

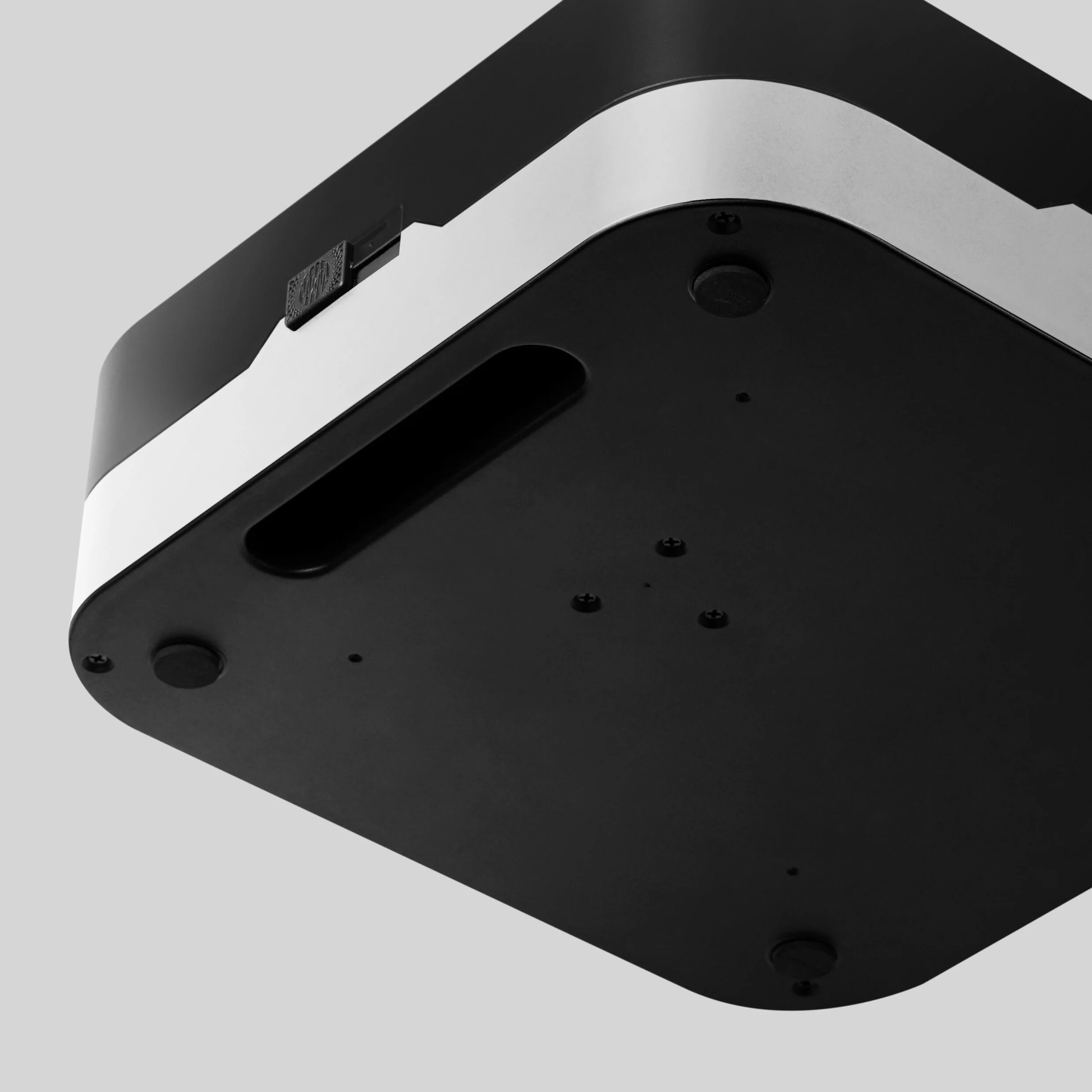

OMNI Bottom


OMNI_Q2

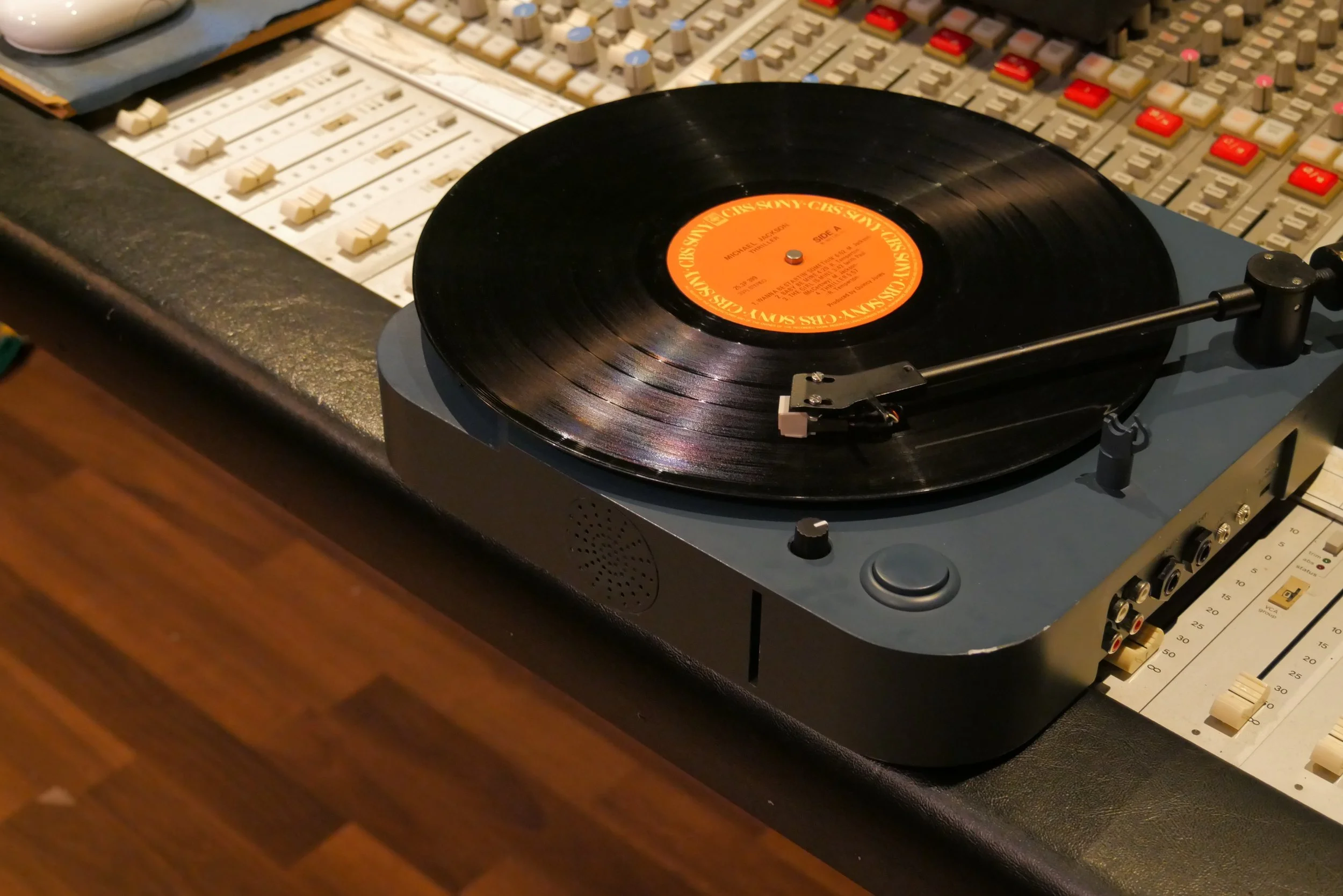

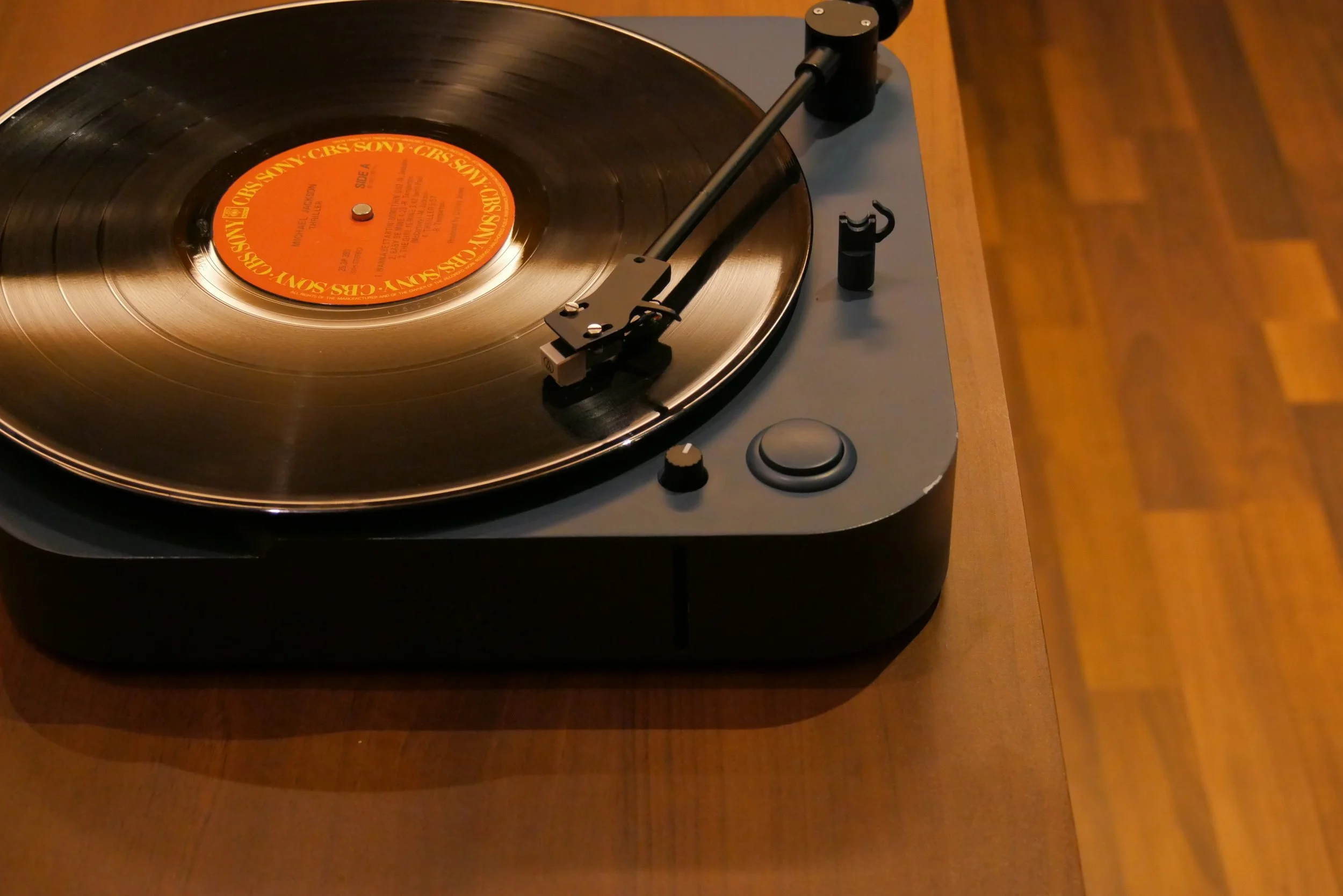

12” VINYL ON OMNI - FOR MUSIC LOVERS

NOT ONLY A MUSICAL INSTRUMENT, BUT ALSO A HIGH FIDELITY PORTABLE RECORD PLAYER.

OMNI, THE AUDIO STATION FOR BOTH ANALOG AND DIGITAL MUSIC, ESPECIALLY FOR VINYL LOVERS LOOKING FOR QUALITY TURNTABLES WHICH DELIVERS BETTER SOUND QUALITY AND FUNCTIONALITY.

OMNI PLAYS 7”, 10”, AND 12” VINYL RECORDS, THE FULLY ADJUSTABLE TONE ARM AND HEADSHELL ACHIEVES HIGH QUALITY STEREO SOUND IMAGE. ADJUSTABLE COUNTER WEIGHT LET YOU FINE TUNE THE TRACKING FORCE FOR DIFFERENT CARTRIDGES WHILE PROTECTS YOUR FAVOURITE RECORDS.

ONE OF A KIND PHONO PREAMP DESIGN WHICH IS A RARE FEATURE FOR MOST CONSUMER GRADE TURNTABLES, IT RECREATES RIAA EQ CURVE WITH LESS THAN +/-0.5DB ERROR, WHILE PROVIDES OVER 90DB OF DYNAMIC RANGE. ON TOP OF THAT, THE BUILT-IN HIFI GRADE BLUETOOTH AUDIO RECEIVER MEANS YOU CAN PLAY YOUR FAVOURITE MUSIC FROM YOUR SMART PHONES.

WE BELIEVE OMNI NOT ONLY OFFERS GREAT SOUND QUALITY AND FUNCTIONALITY, BUT ALSO ENHANCE PLAYBACK EXPERIENCE FOR MUSIC LOVERS.



FEATURES ARE ALL WELL-DESIGNED WITH A SIMPLE THOUGHT IN MIND:

”OMNI WOULD GIVE ANYONE AN EASY ACCESS TO TURNTABLISM, PERHAPS EVEN BRINGING IT INTO THE NEXT LEVEL.”

Banny Ng

Founder of headachesound


OMNI - the World 1 Portable DVS Turntable

Colours: Goldsmith OMNI / Navy Blue OMNI / Matte Black OMNI

OMNI DIMENSION WITH LID: 30X30X9 (CM) / Weight with Lid: 2.5kg
