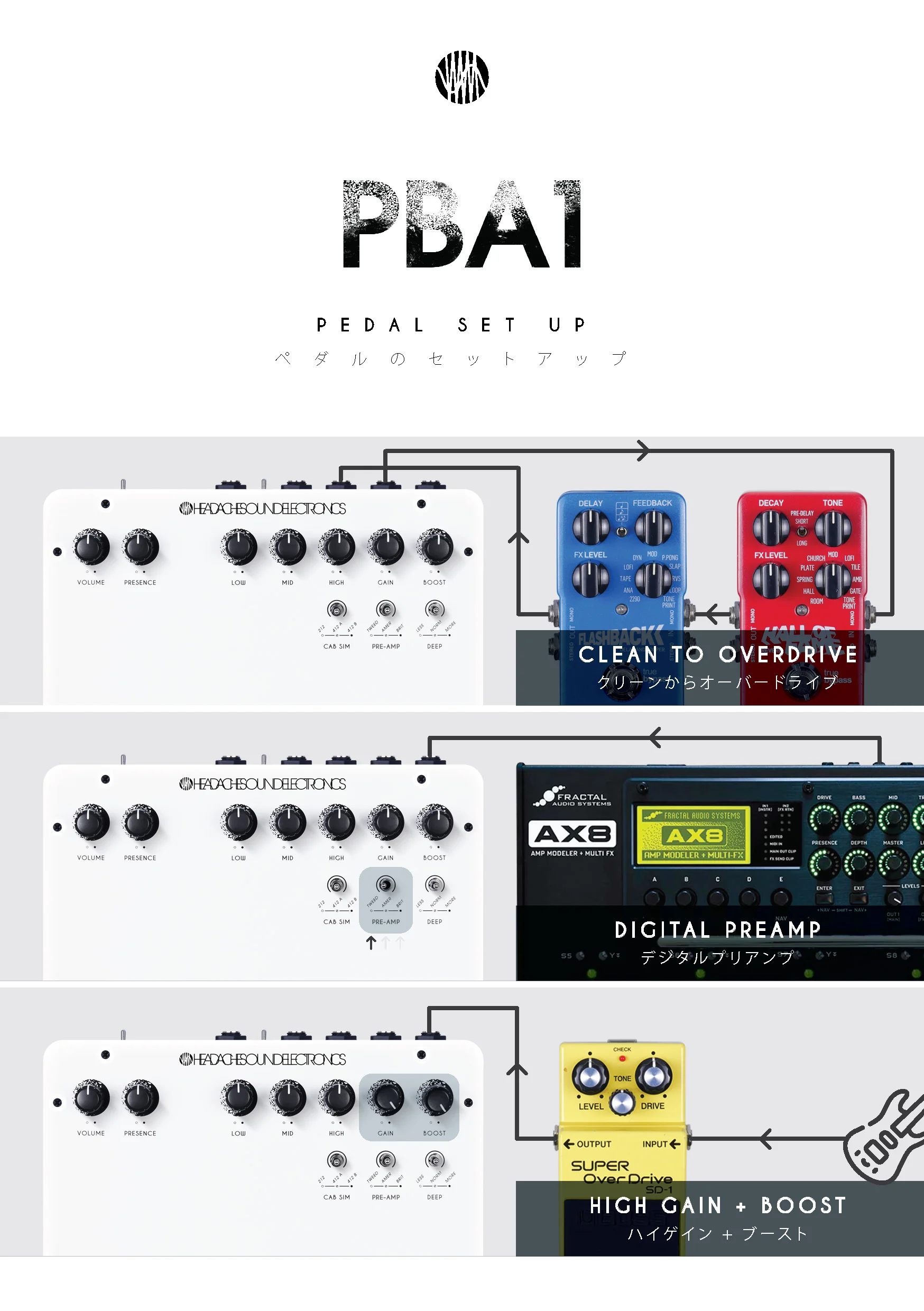

The Only AMP
YOUR Pedal Board Needs

-

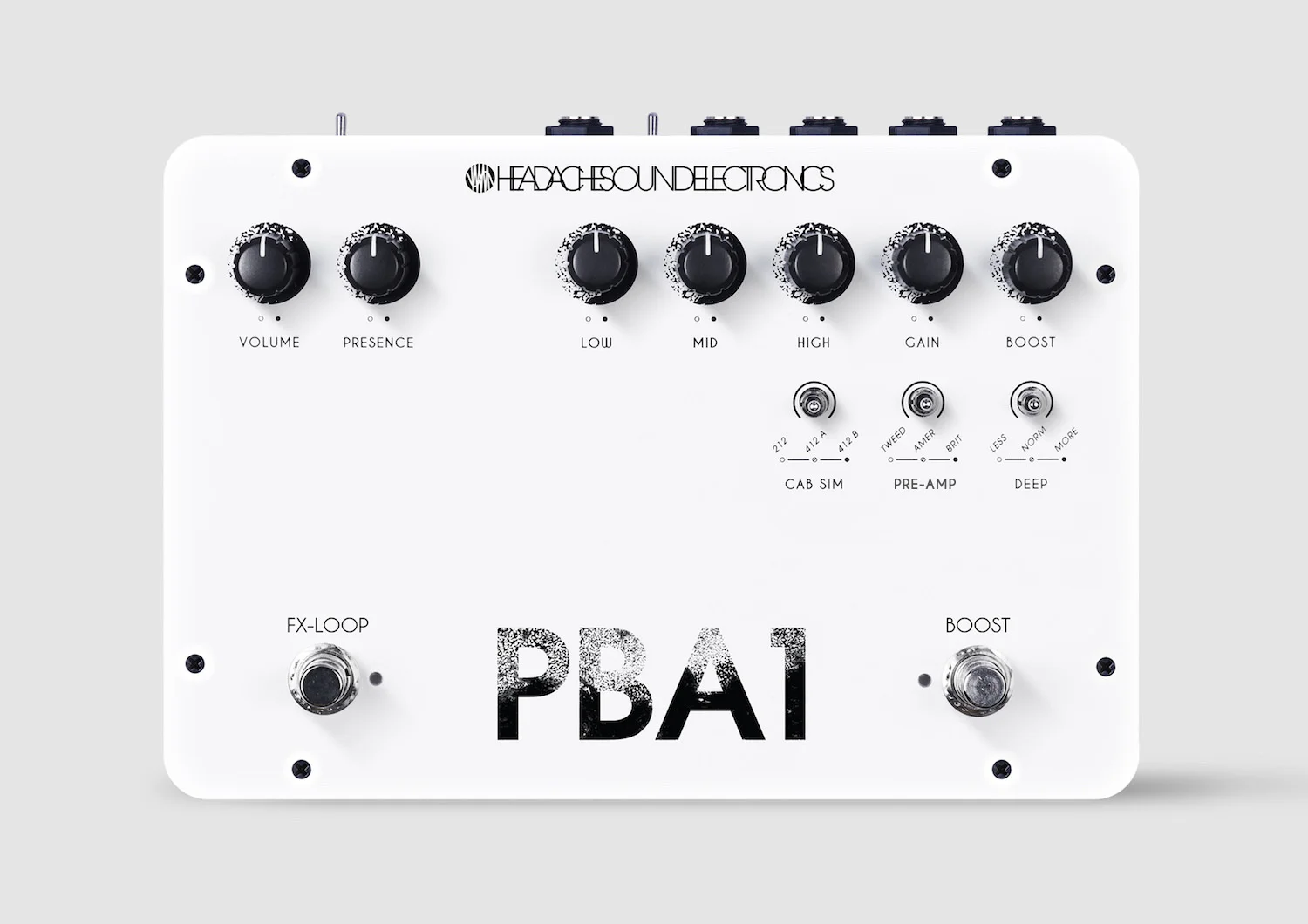

Volume

^ controls the volume of cab out / DI / headphone

Presence

^ overall tone control of the preamp

LOW

^ controls low frequencies below 700hz

MID

^ controls mid frequencies around 700-2000hz

High

^ controls high frequency above 2000hz

GAIN

^ controls the gain of preamp

BOOST

^ controls the amount of boost when boost is enabled

CAB SIM

^ select different cab sim models of DI/headphone output

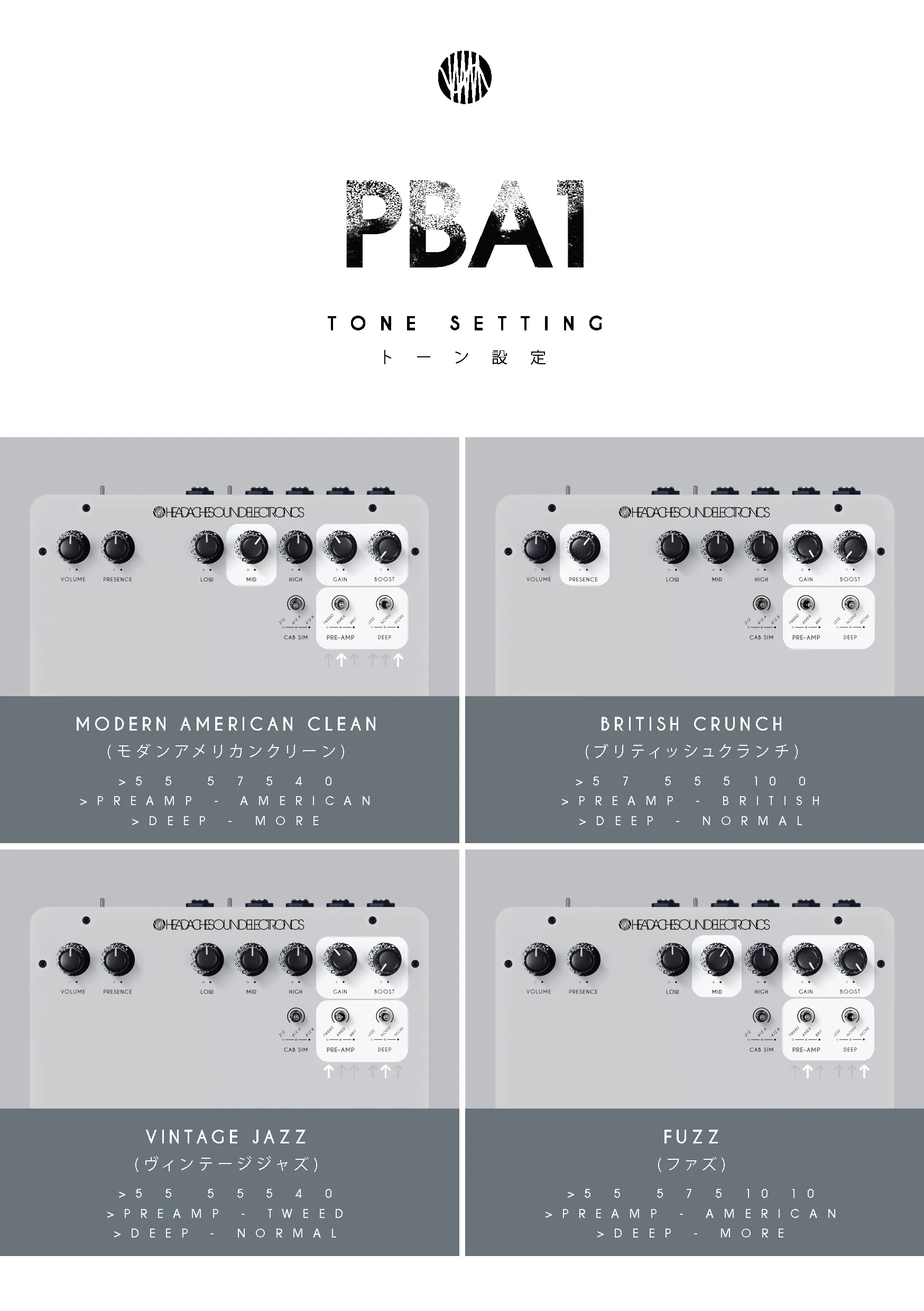

VOicing

select different tone stack voicings

* tweed - bypass the tonestack

* amer - modern fender tone stack

* brit - modern marshall tone stack

DEEP

^ controls low frequency resonance

FX-Loop/Mute
(Footswitch)

^ enable / disable effect loop, hold to mute

BOOST
(Footswitch)

^ enable / disable boost




PBA1_BackPanel

Input

^ guitar input

Send

^ preamp out / effect loop send

Return

^ power amp in / effect loop return

DI/HP

^ Switch > between DI out / Headphone out

**balanced DI out (tip = hot, ring = cold, sleeve = ground)

Cab Out

^ connect to guitar cabinet 3-16ohm

9V Out 1000mA

^ provides 9v 1000mA DC power to effect pedals

MAIN Power On/Off

^ Main Power On/Off Switch

Power In

^ only connect to power adapter provided





PBA1Spec

specifications

Dimensions:

^ 224 x 154 x 37 mm

DC Adaptor Input:

^ Universal Voltage (AC100-240V)

Indicator:

^ Power LED, Effect Loop LED, Boost LED

Power Amplifier:

^ 1x 80W Class D

PBA1 Weight:

^ 700g

DC ADAptor Output:

^ DC 24V 4A

Operating Condition:

^ Temperature 0-40 Degrees Celsius

Preamplifier:

^ 1x 12AY7 (360V B+)

DC Adaptor Weight:

^ 500g

Materials:

^ 2mm Punched Aluminium

Power Consumption:

^ idle 7.2W
